Multi-Source Gateway for Collecting Air Quality Data in Smart Buildings

Multi-Source Gateway for Collecting Air Quality Data in Smart Buildings

The goal of the MARINA R&D project is to propose innovative approach for optimal ventilation management of tertiary buildings. In this project, CETIC contributes its IoT expertise toward advanced and transparent management of the heterogeneity of the involved sensors and actuators along with their data. Test set-ups are being deployed and they include a variety of components including in particular some innovative Volatile Organic Compound (VOC) sensors. This will ultimately make it possible to offer a personalised innovative facility management service exploiting adapted and relevant sensors and data sources for the specific usage scenarios of each building.

Date: 5 April 2023

Expertises:

Scalability of embedded systems and IoT networks

Domaine: Energy and environment

Asset: Dmway

About project: Marina

In the MARINA (ModulAR INdoor Air quality management platform towards energy efficient systems and healthy places) project, CETIC provides expertise in the advanced and transparent management of the heterogeneity of the sensors involved and the data they generate (see Figure 1). CETIC is developing an IoT middleware, DMWAY (Dynamic Mapping Gateway), allowing efficient management of IoT data streams from/to heterogeneous data sources, interfaces and protocols. DMWay is a modular, extensible and configurable middleware, based on a flexible architecture leveraging a toolbox of specialised software modules (see Figure 2).

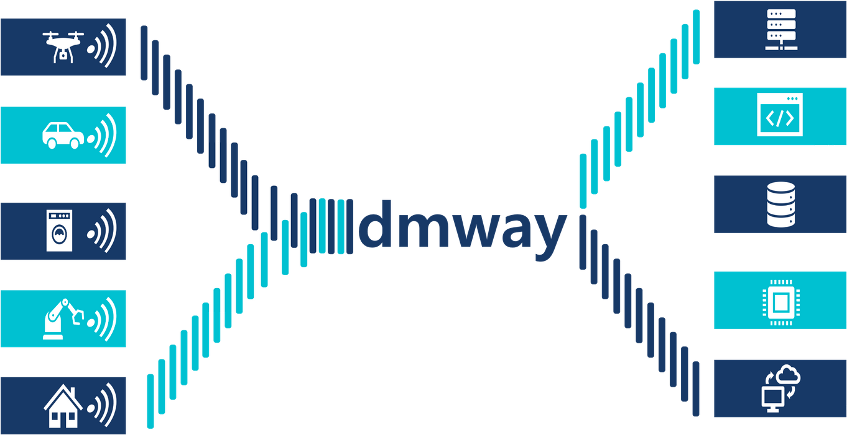

Figure 1. DMWAY universal Gateway

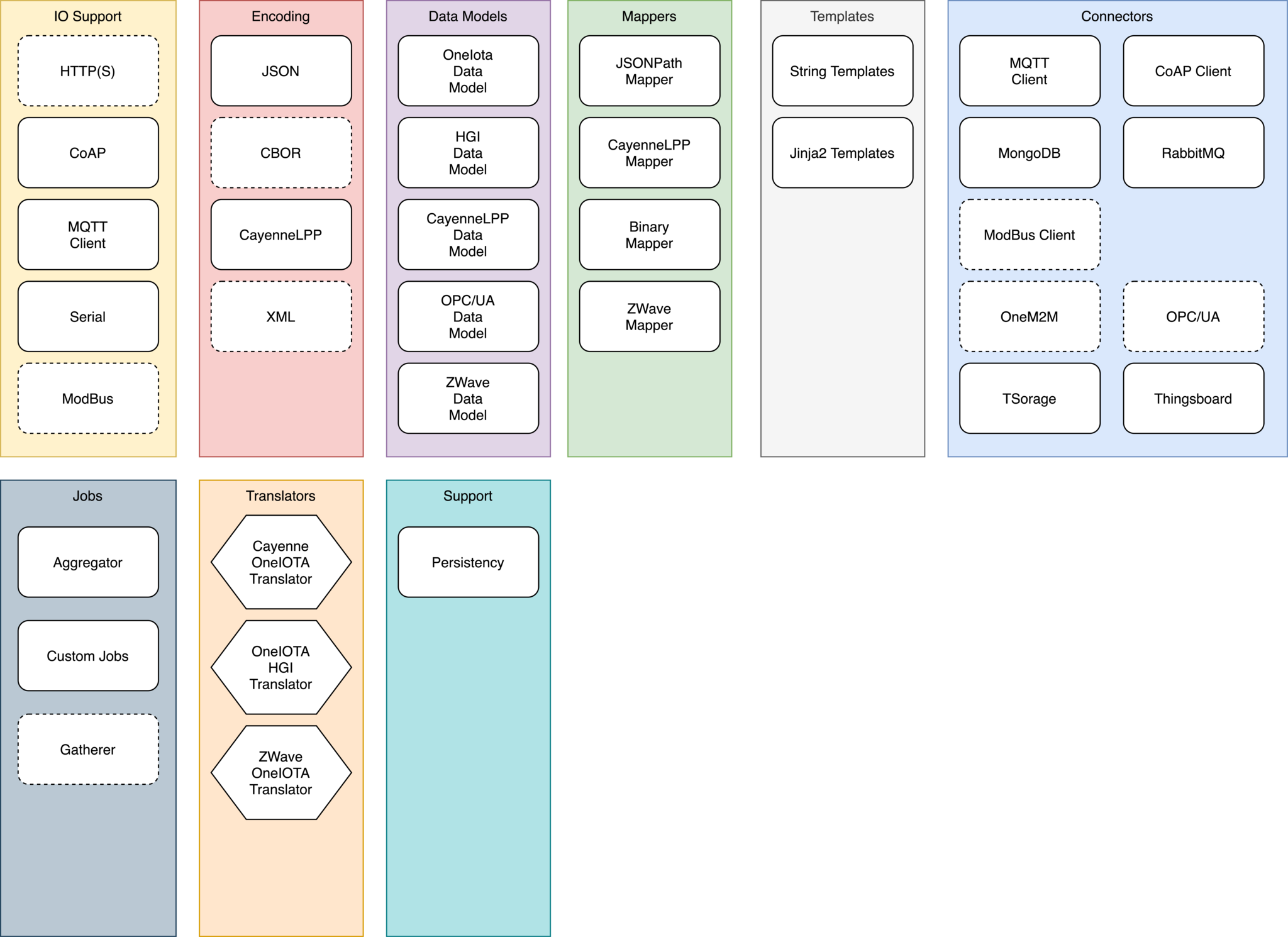

Figure 2. DMWay Toolbox

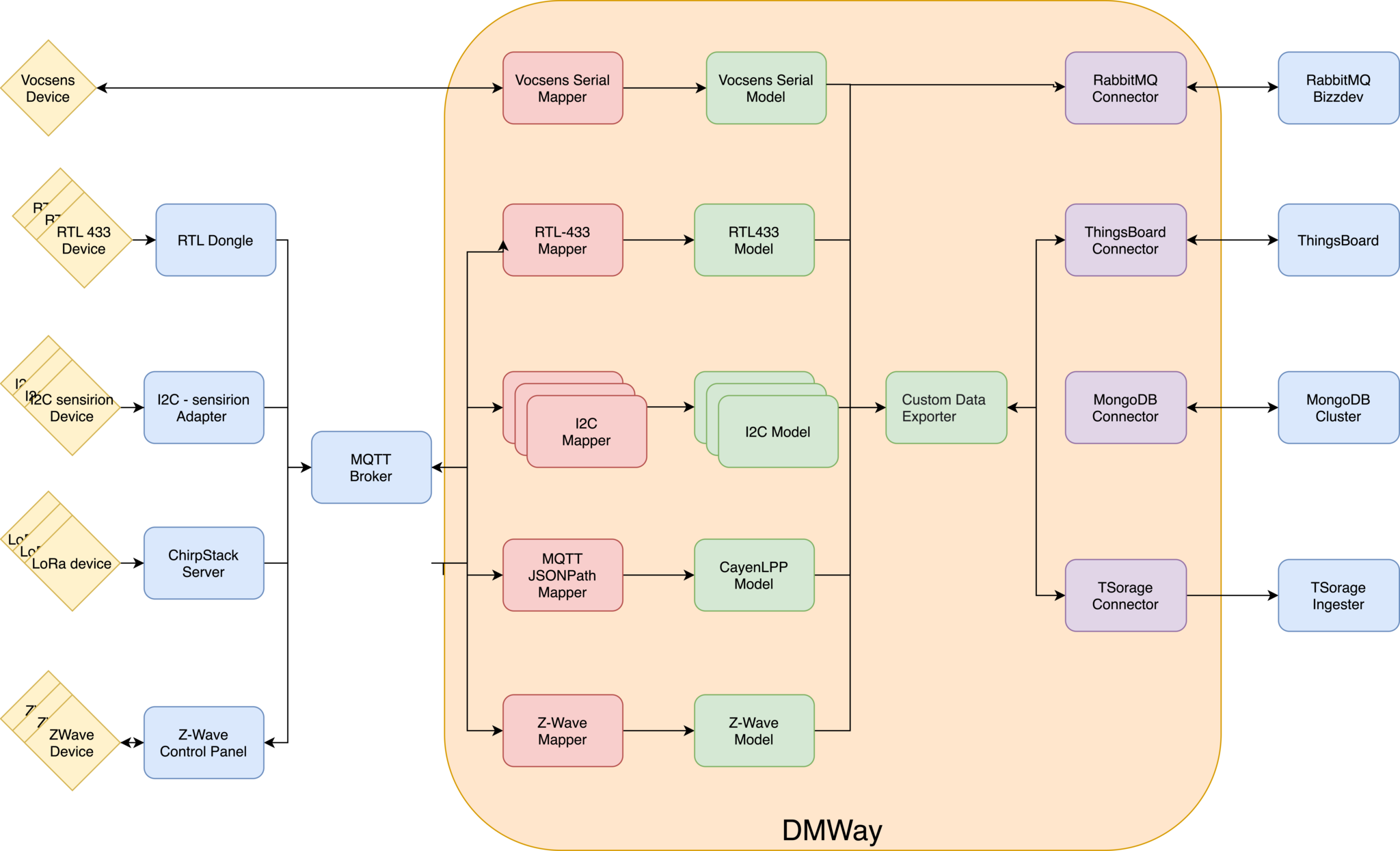

Figure 3 represents the DMWay toolbox’s use for the implementation of the CETIC’s building monitoring demonstrator with, as input, the data sources currently supported and, as output, the connectors to the remote systems currently implemented.

Figure 3. Architecture of CETIC building monitoring

In the MARINA project, the support and integration of air quality data sources is done incrementally through the implementation of Proofs of Concept (PoC). This enriches the interfaces and protocols supported by DMWay. Two PoCs are deployed, with the partners BizzDev and VOCSens.

Deployment of DMWAY at the BizzDev partner site

The objective of this PoC is to evaluate DMWAY in the BizzDev partner’s environment. The PoC is represented in the figure below, it allows the collection of data from connected sockets and multi-sensors deployed in the premises of BizzDev, and from a remote ammonia - NH3 sensor(developed by the VOCSens partner for this example) deployed in CETIC premises. The latter sends the measurements remotely to the BizzDev infrastructure using the RabbitMQ connector. Thus, this PoC illustrates DMWay’s ability to manage various distributed data sources, and to connect effectively and simultaneously to the processing and visualisation services in different locations (Gosselies and Tournai in this example).

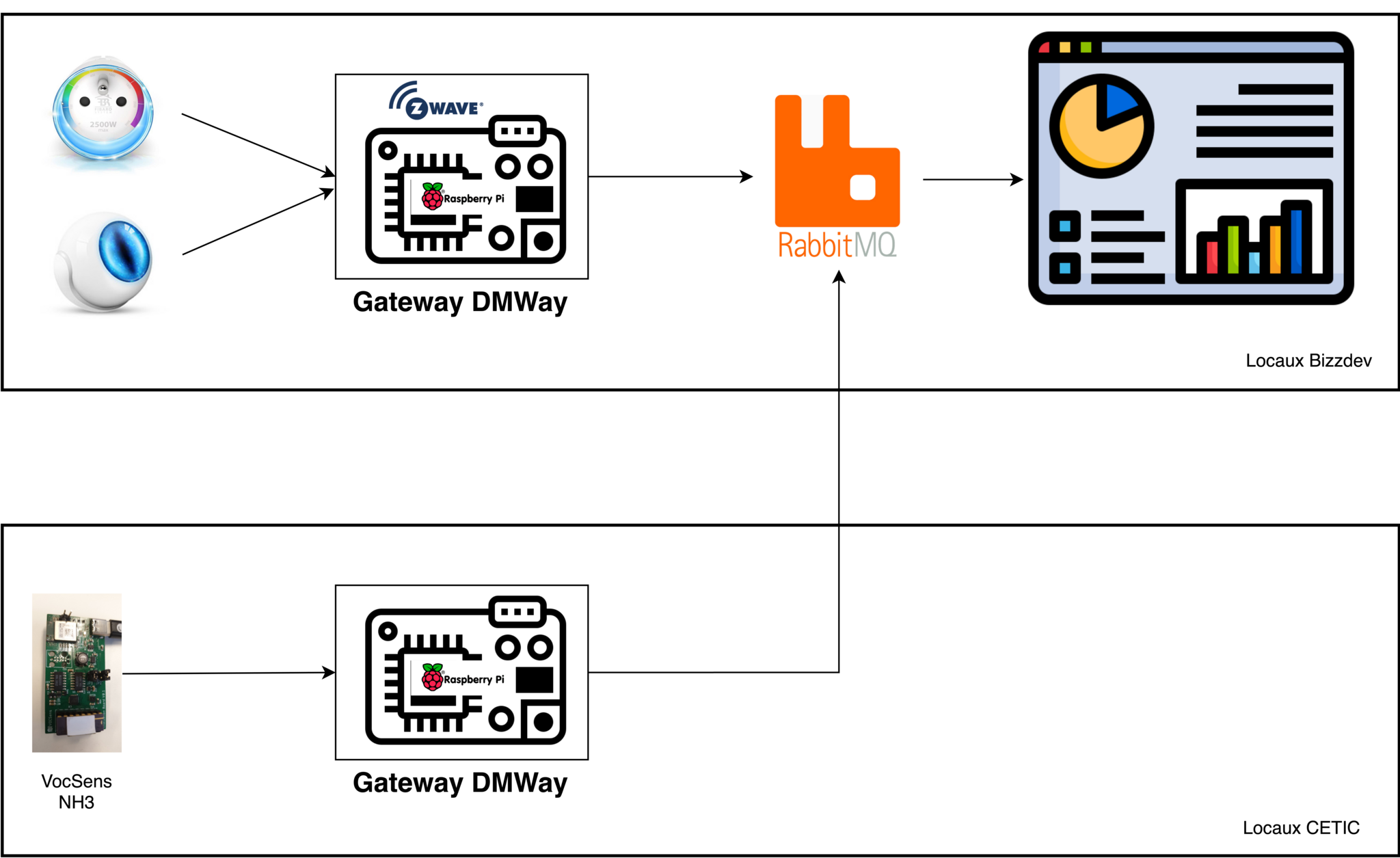

Figure 4. Illustration of the BizzDev PoC

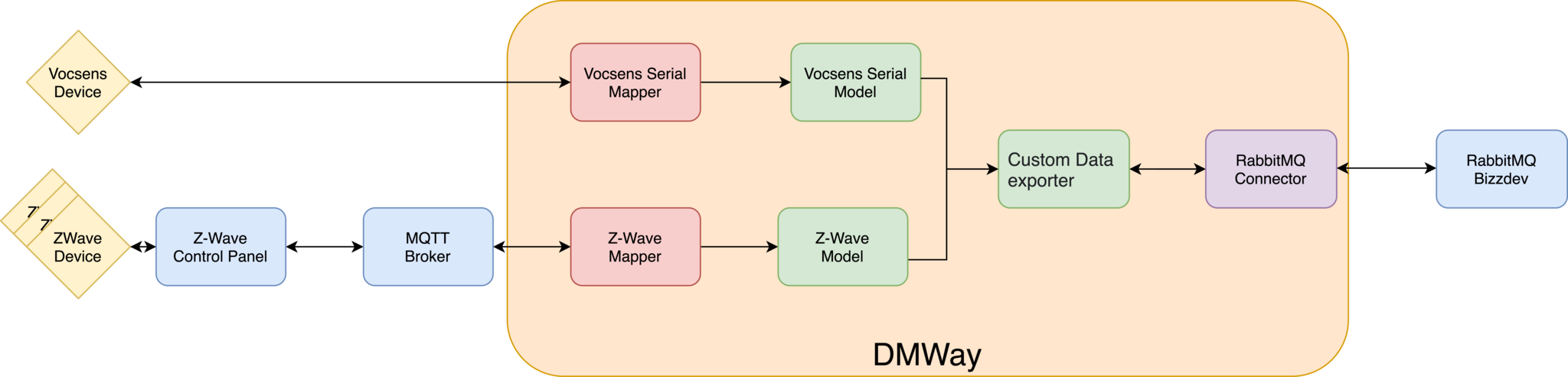

The figure below shows the interfaces and connectors instantiated within DMWay release for the implementation of this PoC.

Figure 5. DMWAY components of the BizzDev PoC

The figure below shows the visualisation dashboards at the two sites.

Figure 7. Visualization Dashboards

VOCSens Sensor integration with own semantics and data format

The objective of this PoC is to implement the specific interface allowing the VOCSens sensor’s proprietary data collection support. This sensor communicates through a serial link. It is connected to a RaspberryPi on which a DMWay instance is deployed. A Mapper is implemented to translate the data received from the sensor in JSON format into an associated data-model representation for it inside DMWay. This work has to be done only once. Hence, the integration of new sensors with the same characteristics is greatly facilitated thereafter since it can leverage the same data modeling henceforth supported :

  • If the new sensor has the same functionality, no further action is required to support its data collection and integration
  • If the new sensor has new features, these will be integrated into the existing DMWay plugin and will be natively supported and available for future integration of similar sensors.

By the way, this PoC allowed us to develop and validate connectors for the simultaneous transmission of data to two different applications where the collected data collected is explored (see Figure below):

  • locally and viewed at CETIC through the local ThingsBoard IoT platform instance.
  • remotely, at the BizzDev infrastructure through the RabbitMQ broker

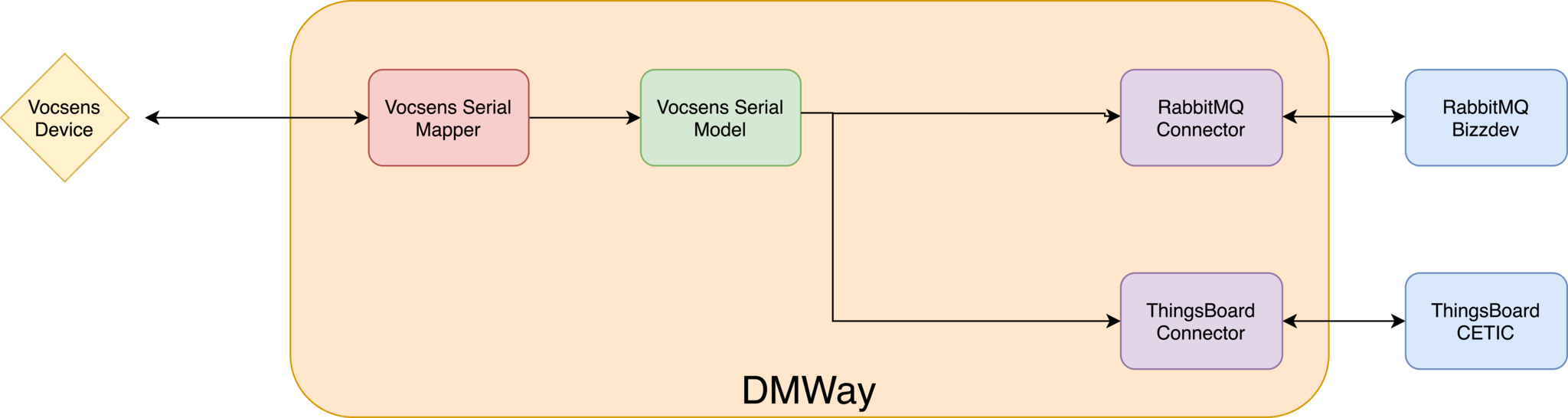

DMWAY components of the VOCSens PoC

Conclusion

Through these two PoCs, we showed the flexibility potential of DMWay middleware in managing different sensors with heterogeneous data formats. The set-ups were easily and quickly customised thanks to the mechanisms offered by DMWay and allowing to support and update the specific semantics of each data source, whether it comes from an established standard or from a proprietary definition. We also demonstrated the ability of DMWay to transmit the collected data transparently and simultanously to different remote systems.
These promising intiial positive results of the project make it possible to continue towards the development of an optimised service for indoor air quality management in buildings in the tertiary sector.
